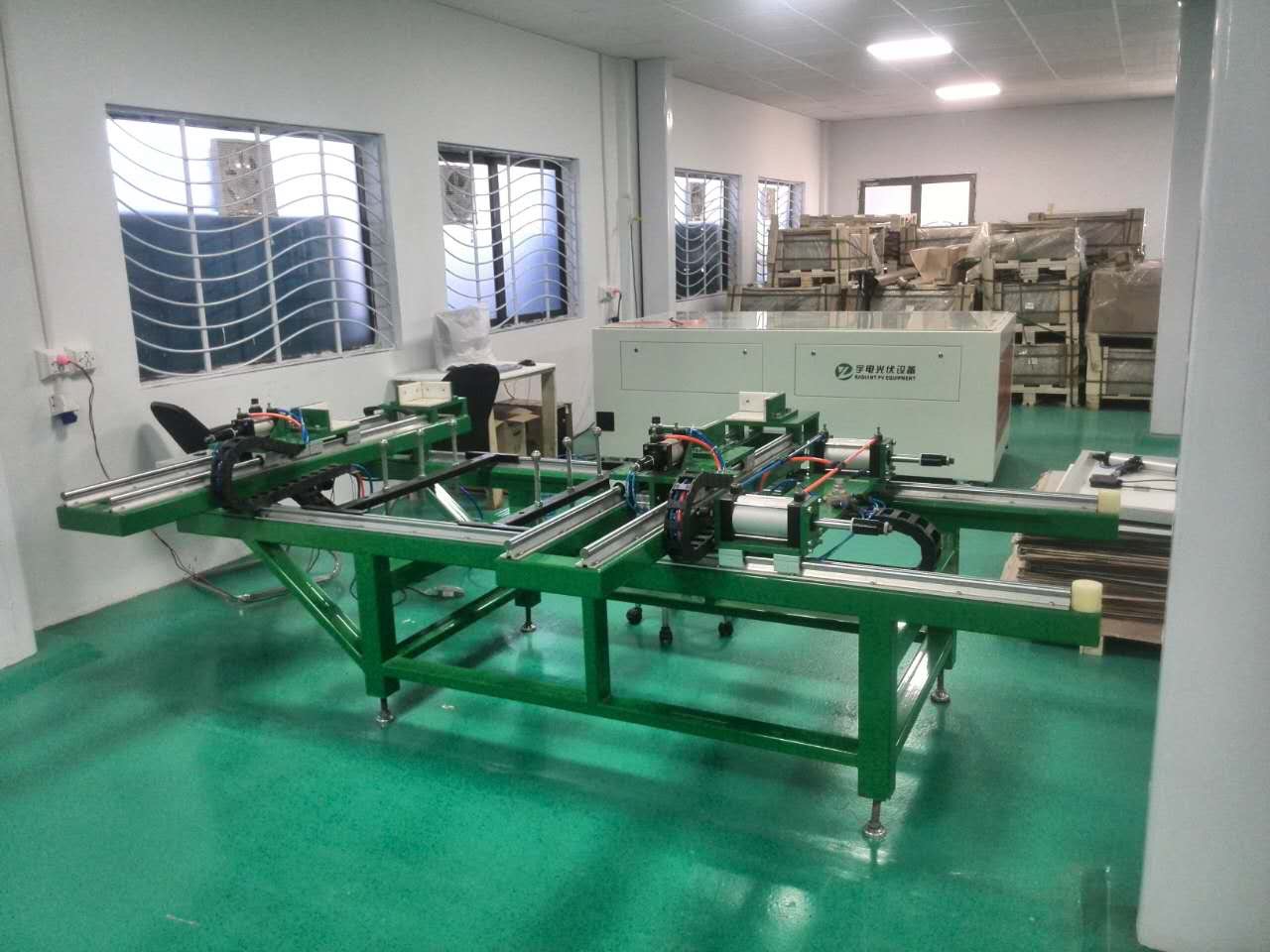

Framing Machine(pneumatic type)FM K115 solar frame assembly station

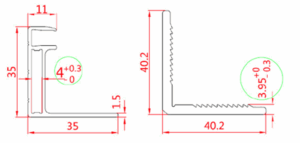

Frame type:

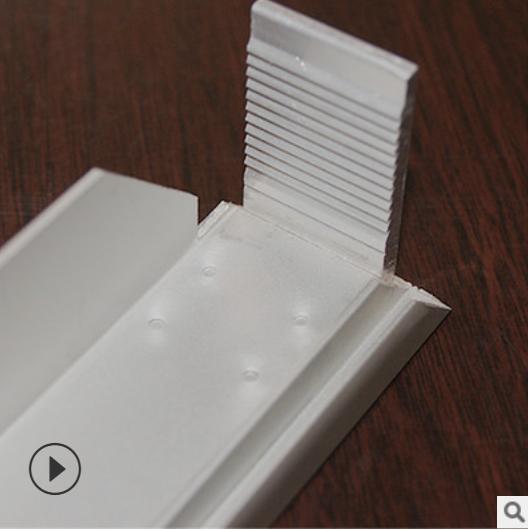

The corner elements are narrower than the inner groove of the frames, so the press-fit fastening takes place using the pre-punched fastening technology

Application:

aluminum framing(Production process: worker install aluminum into solar panel,then put solar panel into framing machine, will do framing for four angles)

Specification:

Cylinders:Airtag
Solenoid valves: Airtag
Maximum frame size:2000 X 1100 X 50 (35) mm
Minimum frame size: 350 X 600 X 50 (35) mm
Applicable aluminum frame types: 35 * 50 mm
Operating voltage: 220V / 50Hz
Air consumption: 0.7-0.8Mpa,
Air flow: 5L / min
Power:0.1 KW, AC230V / 50Hz
Dimensions: 3000 * 1700 * 1000mm
Weight: 1500 kg

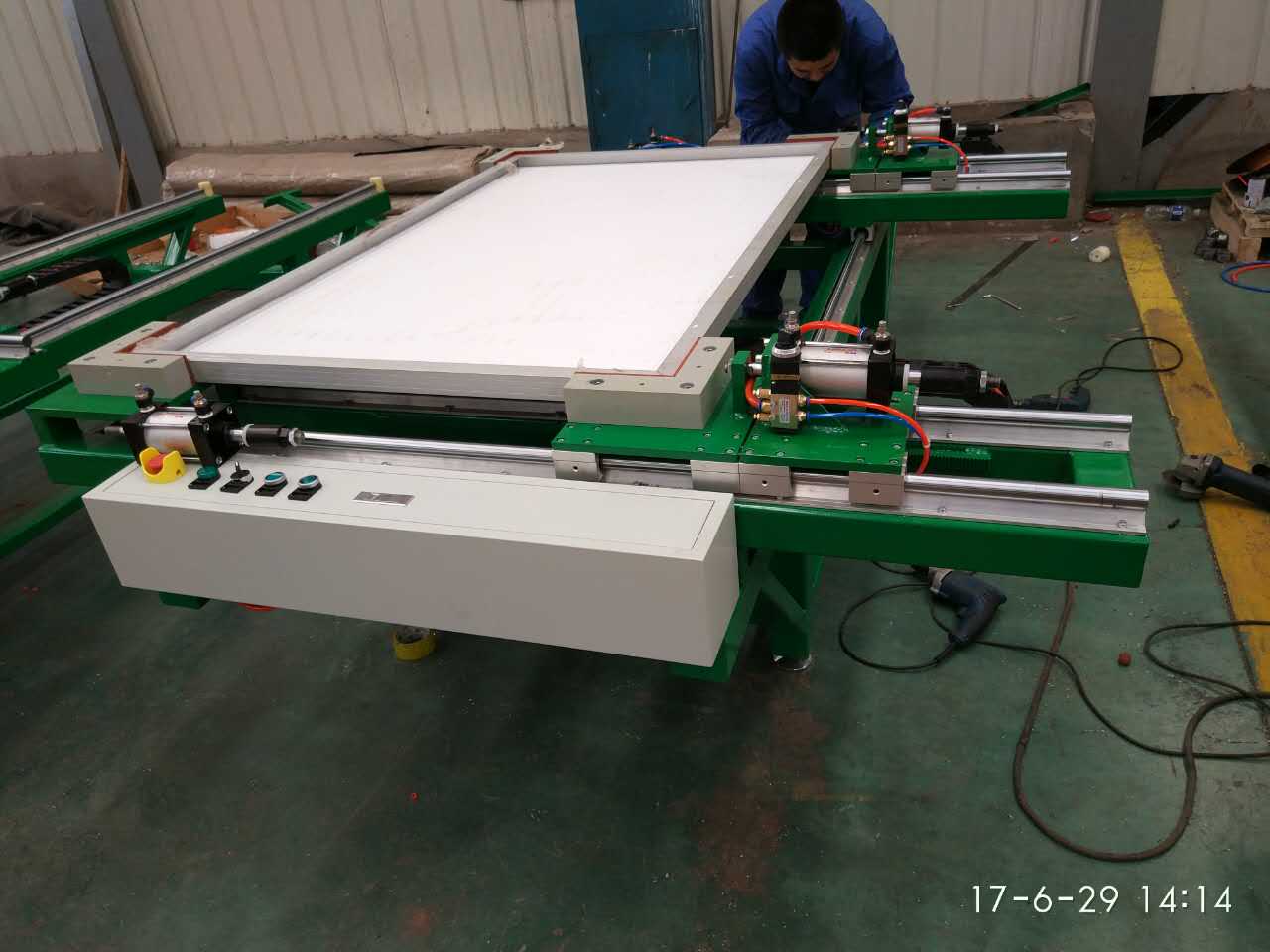

Automatically frames the laminated material. It automates and guarantees the quality of the key process used in solar panel manufacturing. The machine presses the aluminum frame onto the edge of the solar panel structure, and then uses four corner elements to fix the corners.
Take advantage of the combined strength of the working cylinders and the stable steel frame structure Easy and fast to fix the reinforced aluminum frame frames, which saves time and improves product quality
With the rotating wheels, it can guarantee the freedom of the modules in all directions, which protects the module surface, and is convenient to operate
The module consisting of two-way fixed end and two-way action can be suitable for the module to install the frame widely to meet the needs of the industry, and can also meet some non-standard sizes to meet the unique space requirements.
Machine features:

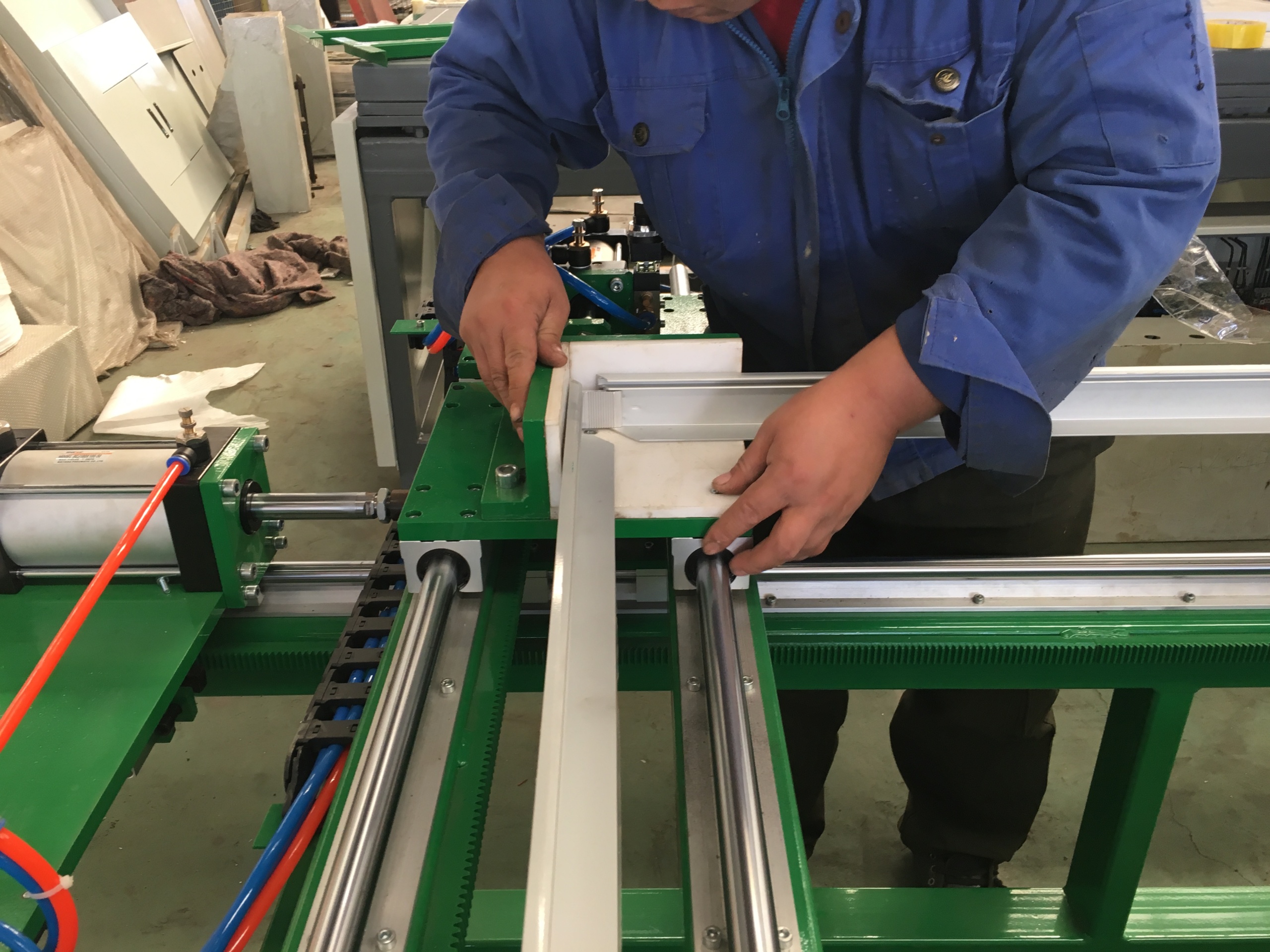

a) Frame pressing, Includes pneumatic pre-pressing rollers. 1-1 fixed side 1-1 pressing side
b) The frame width size is adjustable.
c) Multiple gripping points help to easily and safely press the head during movement

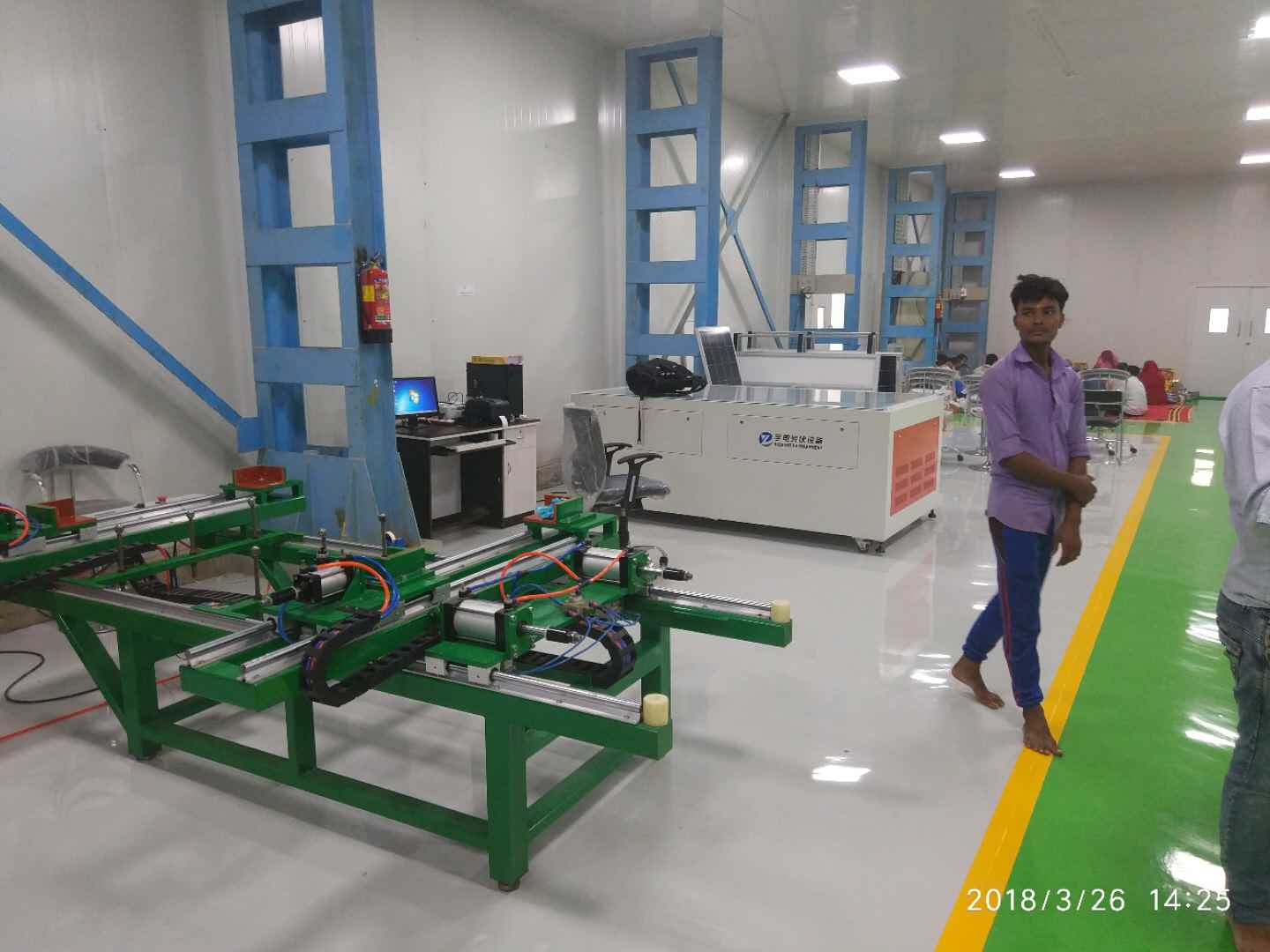

Sun simulator ( tester) FM B335 Solar sun simulator power testing station

Spectrum rangeMeet IEC60904-9 requirements
LightningPulsed Xenon lamp
Flash light life≥60.000 times
Radiation intensity100mW/cm2 (Adjustment range 20~120mW/cm2)
Correctionautomatically corrected for temperature conditions, thus providing a more precise output shift compared to standard conditions
Measurement of parameters:open circuit voltage Voc short circuit current leakage voltage current and voltage at peak power load factor panel temperature
Irradiation uniformity≤±3%
Irradiation instability≤±3%
Test results consistency≤±1%
Electrical performance measurement error≤±2%
Single flash time10-30MS adjustable
Testingmono-crystalline silicone, poly-crystalline silicone, amorphous-crystalline silicone solar module
Effective measure range5-500W
Measure voltage1-100V(resolution 1mv)
Measure current100m A~20A(resolution1mA)
Test parametersIsc、Voc、Pmax、Vm、Im、FF、EFF、Temp、Rs、Rsh
Spectral range280-1900nm
Spectral resolution4nm (280-1000nm) 10nm (1000-1900nm)
Sampling bandwidth1.5nm (280-1000nm) 3.8nm (1000- 1900nm
Xenon quantity2pieces
Detectors::512-element UV-enhanced Si photodiode array 256-element TE-cooled advanced InGaAs photodiode array
Trigger delay0 – 100 milliseconds
Trigger gerjesztésExternal TTL: ≤5μsec
Direction of irradiationDirect up
The light source100mW/cm2 (adjustable range: 20~120mW/cm2)
Performance test range:20W ~ 300W
Testing way5lines testing
Testing time5S
Testing temperature15℃~35℃
Size range2100 x 1200 mm
Working power220V / 50Hz / 2kw
Machine dimension2630*1420*900mm
Weight350 Kg

Equipment Performance

The equipment is specially used in the filtration of solar energy mono-crystalline silicon and the poly-crystalline silicon cell pieces. Through stimulates the solar spectrum lamp-house,carries on the testing and surveys to the cell module related electrical parameter,according to the measurement result classifies the cell piece.

It has unique apparatus of modifying,to input the compensate parameter,it will carries on automatically/manual temperature compensation and compensate with the light intensity,and automatically measures and modifies the temperature. Based on the Windows operation surface,and humanized-design testing software,it records and displays test curve(I-V curve,P curve) and the test parameter(Voc, Isc,Pm,Im,FF,EFF), the test of sequence number is automatically produced and preserved to the assigned folder.

Applicable fields

Testing mono-crystalline silicone, poly-crystalline silicone, amorphous-crystalline silicone solar module.

Technical Features

Solar simulators approximate natural sunlight. To ensure that they meet ASTM and IEC standards, they must be tested in three areas: spectral matching, spatial uniformity and temporal stability Spectral matching classifies a solar simulator based on the amount of light (irradiance) it emits and assigns an A, B or C status based on performance measurements at wavelengths of 400-1100 nm With the lighting testing machine, we offer a solution that can reach a panel capacity of up to 120 MW! The XENON lamp is very reliable, allowing multiple flashes. The tester does not just flash once and give a result, but repeats this 5 times. It creates an average of these repeated flashes, the result of which is much more accurate than that of a single test flash. The advantage of this version is that it takes less time to determine these five test results than if there were only a common base flash result for just one test cycle
